EMO Hannover 2013 The world of metalworking

EMO Hannnover 2013

EMO Hannover 2013 The world of metalworking
Dates: September 16 (Mon) → 21 (Sat), 2013
Opening hours: 9:00 → 18:00
Venue Fairgrounds Hannover
Matsuura Booth:

Stand D69, Hall27

Official Site:

http://www.emo-hannover.de/

Exhibits List

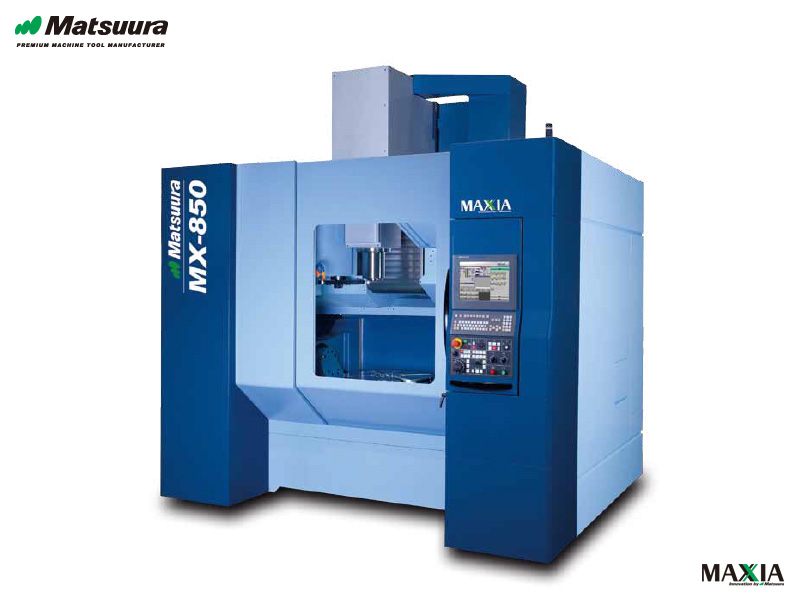

5-Axis Vertical Machining Center MX-520 The MX-850 – Rapidly becoming one of Matsuura’s best selling 5 axis machines in our history

5-Axis Vertical Machining Center MX-850

Travel(X/Y/Z) mm
(in.)
900/780/650
(35.43/30.70/25.59)
Travel(A/C) deg -125~+30/360
Max. Work Size mm
(in.)
Φ760×H450
(Ø29.92×H17.71)
Φ850×H450 ※Bullet shape
(Ø33.46×H17.71) ※Bullet shape
Rapid traverse rate
(X/Y/Z)
m/min
(ipm)
40
(1.57)
Rapid traverse rate
(A/C)
min-1 17/33
Spindle Speed Range min-1 12,000:BT40
Number of Tools pcs 60
NC System   Matsuura G-Tech 31i
Exhibit Spec.

Go To Pagetop ▲

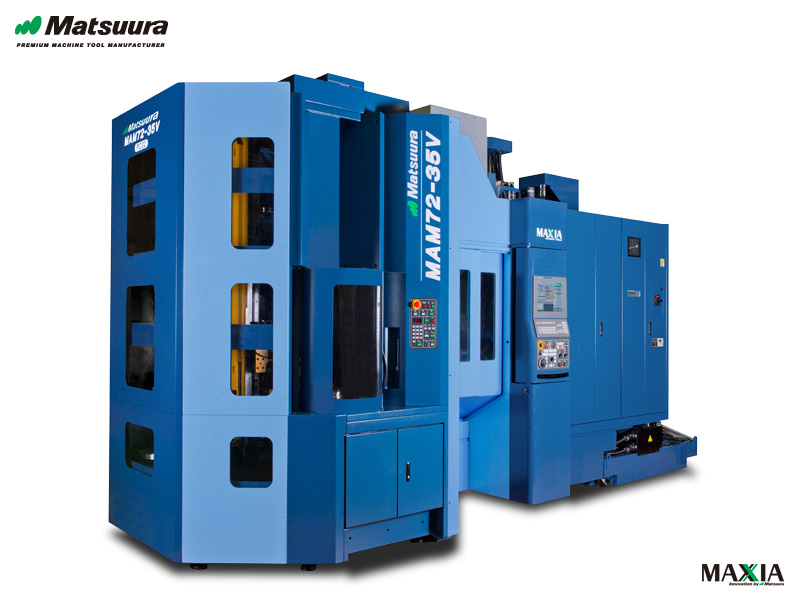

5-Axis Vertical Machining Center MAM72-35V

5-Axis Vertical Machining Center MAM72-35V

Travel(X/Y/Z) mm
(in.)
550/440/580
(21.65/17.32/22.83)
Travel(B/C) deg -125 ~+65/360
Max. Work Size mm
(in.)
Φ350×H300
(Ø13.77×H11.81)
Rapid traverse rate(X/Y/Z) m/min 60
(2.36)
Rapid traverse rate(B/C) min-1 50/100
Spindle Speed Range min-1 12,000:BT40
Number of Tools pcs 240 (Matrix type)
Number of Pallets pcs 40 (Tower Pallet System)
NC System   Matsuura G-Tech 31i
Exhibit Spec.

Go To Pagetop ▲

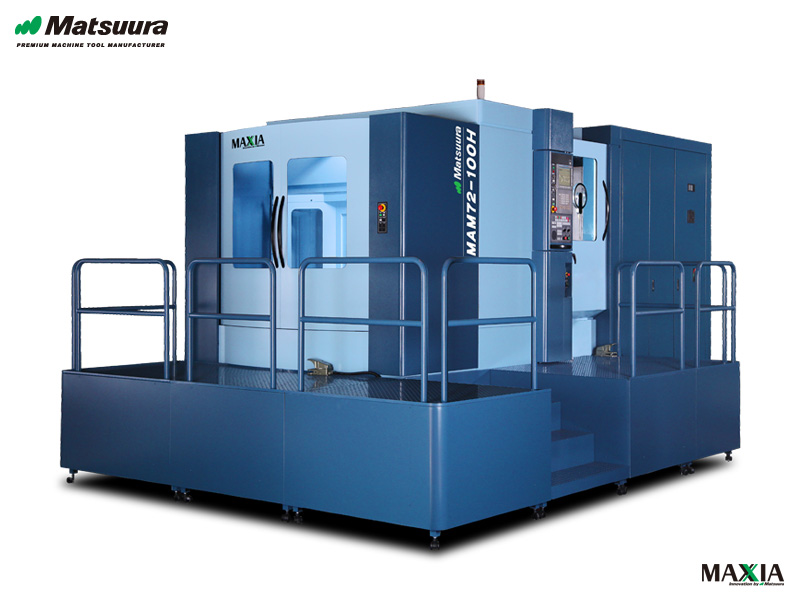

5-Axis Vertical Machining Center MAM72-100H

5-Axis Vertical Machining Center MAM72-100H

Travel(X/Y/Z) mm
(in.)
1,050/920/960
(41.33/36.22/37.79)
Travel(A/C) deg -125 ~+30/360
Max. Work Size mm
(in.)
Φ1,000×H770
(Φ39.37×H30.31)
Rapid traverse rate(X/Y/Z) m/min 60/60/50
(2,362.2/2,362.2/1,968.5)
Rapid traverse rate(B/C) min-1 50/75
Spindle Speed Range min-1 12,000:BT50
Number of Tools pcs 150 (Matrix type):BT50
Number of Pallets pcs 2
NC System   Matsuura G-Tech 31i
Exhibit Spec.

Go To Pagetop ▲

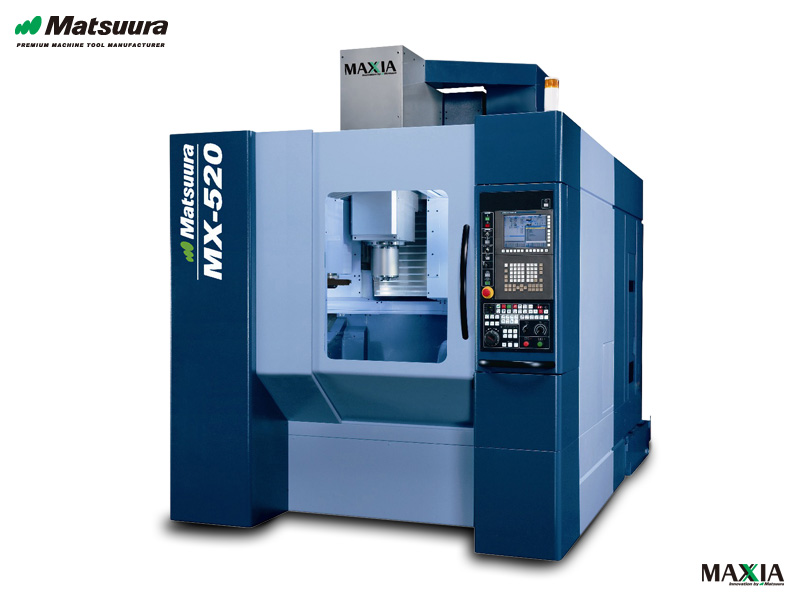

5-Axis Vertical Machining Center MX-520 The MX-520 – Rapidly becoming one of Matsuura’s best selling 5 axis machines in our history

5-Axis Vertical Machining Center MX-520

Travel(X/Y/Z) mm
(in.)
630/560/510
(24.80/22.04/20.07)
Travel(A/C) deg -125 ~+10/360
Max. Work Size mm
(in.)
Φ520×H350
(Ø20.47×H13.77)
Φ710×H350 ※Bullet shape
(Ø27.95×H13.77) ※Bullet shape
Rapid traverse rate
(X/Y/Z)
m/min
(ipm)
30
(1.18)
Rapid traverse rate
(A/C)
min-1 17/33
Spindle Speed Range min-1 12,000:BT40
Number of Tools pcs 40
NC System   Matsuura G-Tech 31i
Exhibit Spec.

Go To Pagetop ▲

Horizontal Machining Center H.Plus-405

Horizontal Machining Center H.Plus-405

Travel(X/Y/Z) mm
(in.)
660/660/660
(25.98/25.98/25.98)
Max. Work Size mm
(in.)
Φ700×H850
(ØΦ27.55×H33.46)
Rapid traverse rate
(X/Y/Z)
m/min
(ipm)
60
(2,362.2)
Spindle Speed Range min-1 12,000:BT40
Number of Tools pcs 71 (Drum type):BT40
Number of Pallets pcs 2
NC System   Matsuura L-Tech 30i
Exhibit Spec.

Go To Pagetop ▲
